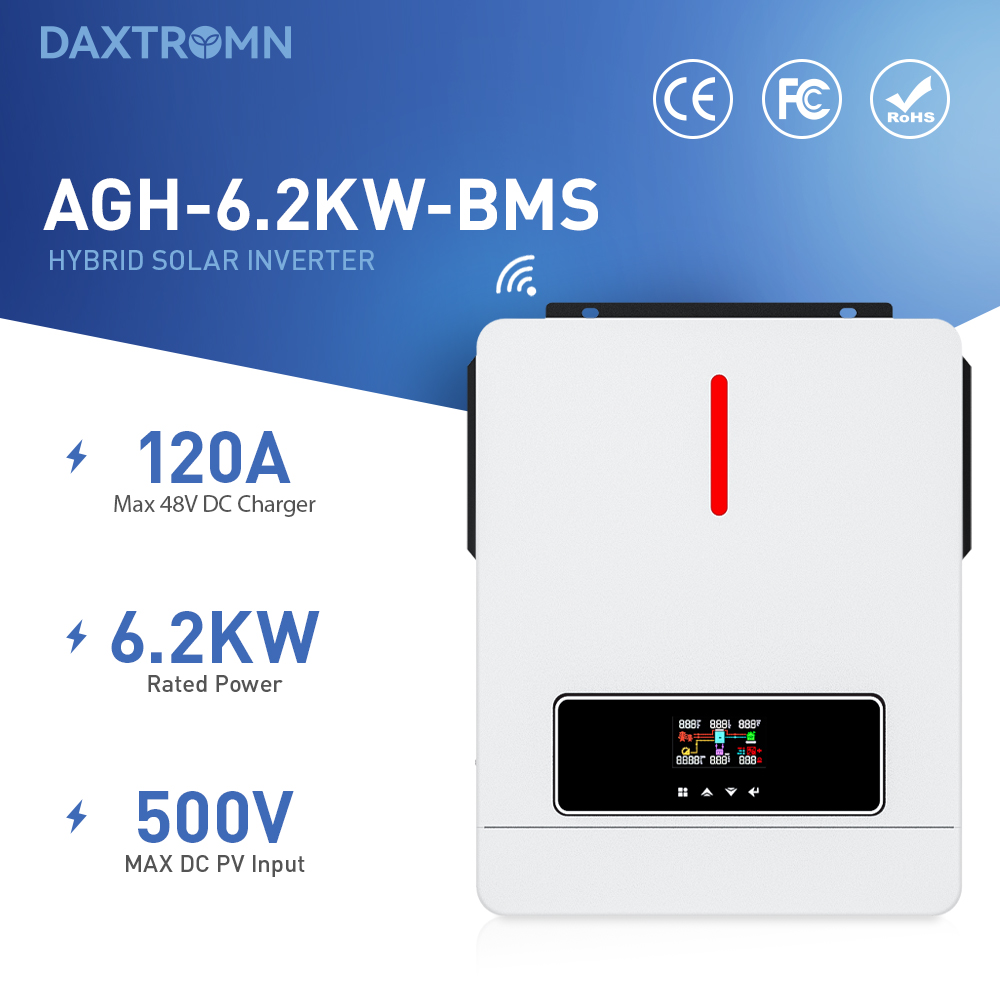

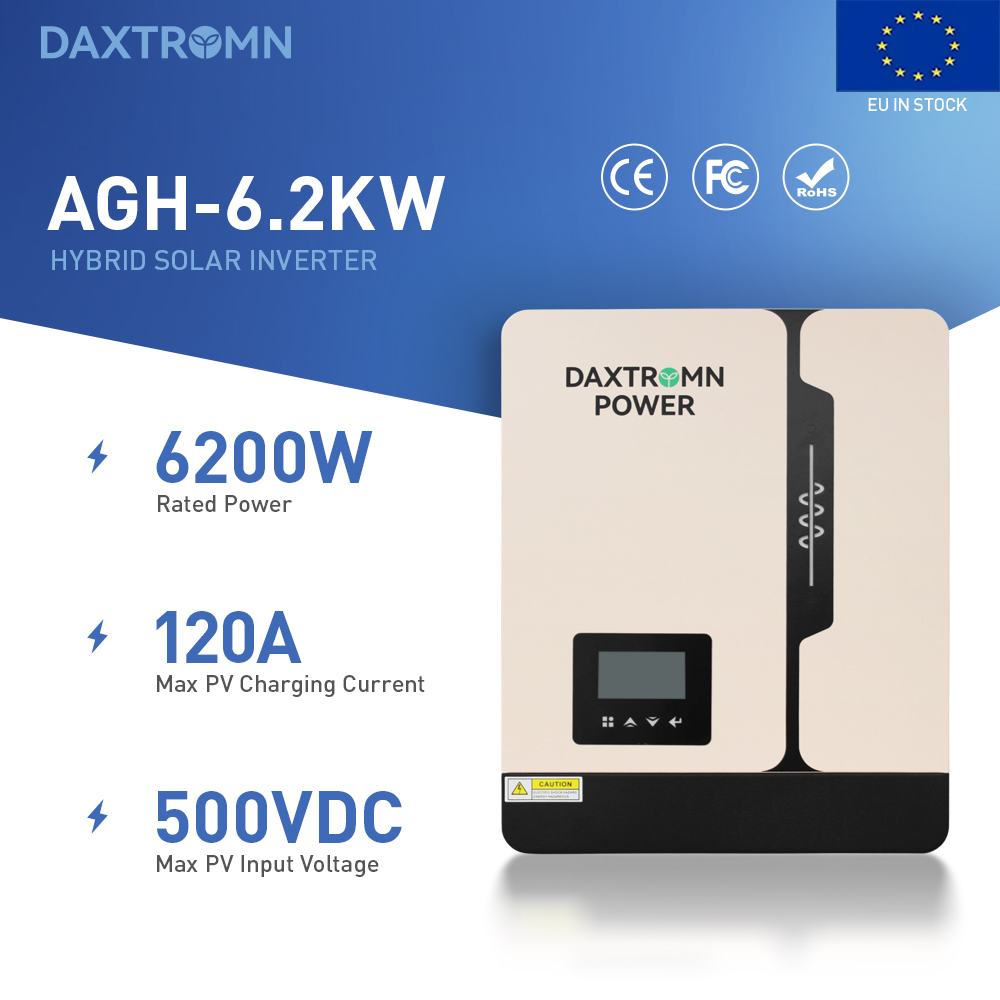

Daxtromn 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
Feature Of AGH-3.6KW 6.2KW PRO Hybrid Solar Inverter
1.Pure Sine Wave Solar Inverter
2.Max 120A MPPT Solar Charger
3.Max 500VDC PV Input
4.2 Loads Output To Guarantee your important equipment always running
5.High PV input voltage range(120~450VDC)
6.Output power factor 1.0
7.Real Hybrid Solar inverter for 24V/48V system
8.Wifi Module for easily connection
9.Efficiency work with or without battery
10.Bundled monitoring & setting software
11.Supports 50hz or 60hz (program adjustable)
12.Able to use ac grid or generator power
13.Built-in anti-dusk kit for harsh environment
14.Optional DC output for DC fan, LED bulb,router and so on
|
Model |
AGH-3.6KW-PRO |
AGH-6.2KW-PRO |
|
Phase |
1-Phase |
|
|
Maximum PV Input Power |
6200W |
6500W |
|
Rated Output Power |
3600W/3600VA |
6200W/6200VA |
|
Maximum Solar Charging Current |
120A |
|
|
GRID-TIE OPERATION |
||
|
PV Input(DC) |
|
|
|
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
|
Start-up Voltage/Initial Feeding Voltage |
90VDC/120VDC |
|
|
MPPT Voltage Range |
90~450VDC |
|
|
Number of MPPT/Max Input Current |
1/23A |
|
|
GRID OUTPUT(AC) |
|
|
|
Norminal Output Voltage |
220/230/240VAC |
|
|
Output Valtage Range |
195.5~253VAC |
|
|
Norminal Output Current |
15.7A |
27.0A |
|
Power Factor |
>0.99 |
|
|
Feed-in Grid Frequency Range |
49~51±1Hz |
|
|
EFFICIENCY |
|
|
|
Max Conversion Efficiency(Solar to AC) |
98% |
|
|
TWO LOAD OUTPUT POWER(V2.0) |
|
|
|
Full Load |
3600W |
6200W |
|
Maximum Main Load |
3600W |
6200W |
|
Max Second Load(battery mode) |
1200W |
2067W |
|
Main Load Cut Off Voltage |
22VDC |
44VDC |
|
Main Load Return Voltage |
26VDC |
52VDC |
|
OFF-GRID OPERATION |
|
|
|
AC Input |
||
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
|
Maximum AC Input Current |
30A |
40A |
|
Nominal operating frequency |
50/60Hz |
|
|
Surge power |
7200W |
12400W |
|
BATTERY MODE OUTPUT(AC) |
|
|
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Output Waveform |
Pure sine wave |
|
|
Efficiency(DC to AC) |
94% |
|
|
BATTERY&CHARGER |
|
|
|
Nominal DC Voltage |
24VDC |
48VDC |
|
Maximum Solar Charging Current |
120A |
|
|
Maximum AC Charging Current |
100A |
|
|
PHYSICAL |
|
|
|
Dimension,D*W*H(mm) |
110*334*423 |
|
|
Net Weight(Kgs) |
9 |
10 |
|
INTERFACE |
|
|
|
Communication Port |
WIFI |
|
|
ENVIRONMENT |
|
|
|
Operating Temperature |
-10~50℃ |
|
Battery Setting, charging voltage adjustable fit for AGM FLOOD and most of the Lithium Battery
Monitor
Support Online Monitor and Setting (if need demonstration contact us on message,we will send you link for the video)
Most of the Value can be setting online visualized operation
Can monitor several device add,help for massive management
Support phone APP setting and monitor
