Daxtromn 15kW 15000w 1&3 Phase MPPT Build In Parallel inverter 3X80A Solar inverter solar charger mains as backup 48V DC

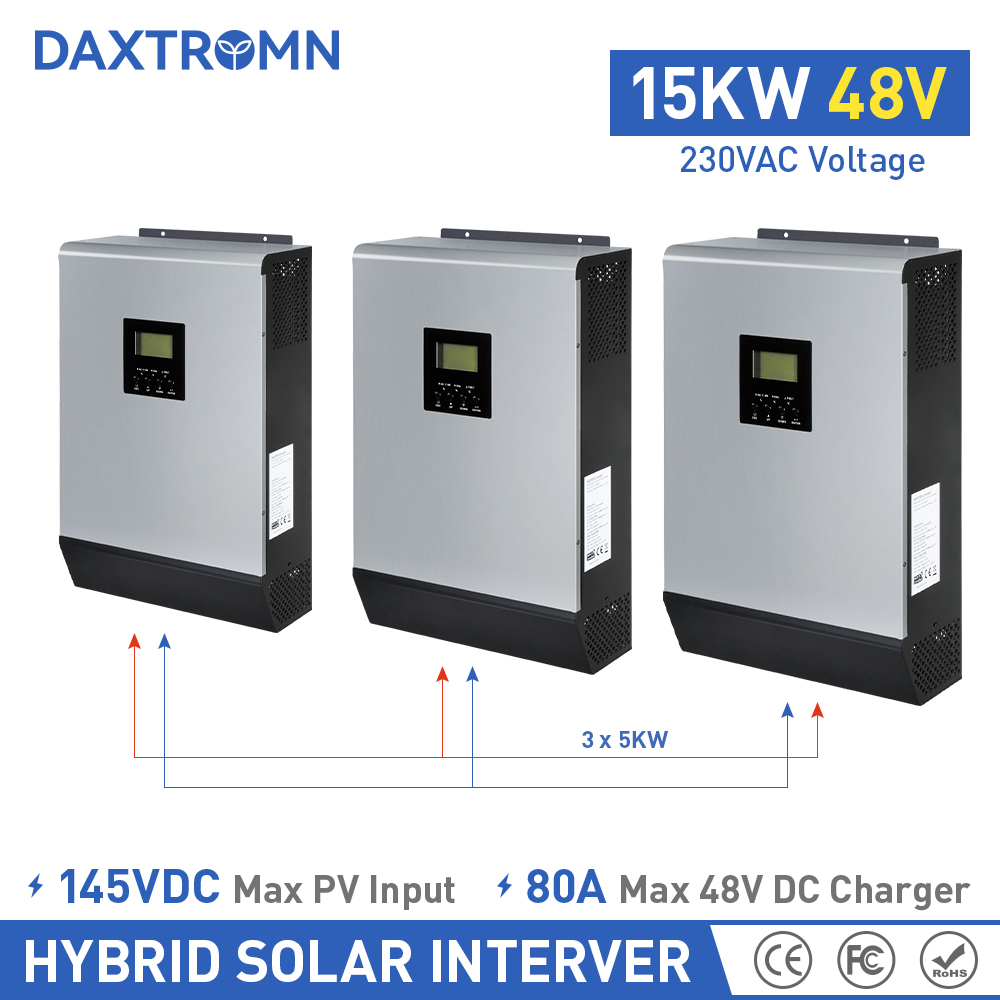

NOTE: This 15KW Solar inverter is formed by 3 PCS BOL-5KW Solar inverter,Parallel kits included, no need to buy extra.
Bellow is the specificaiton for BOL-5KW
-
1. Pure sine wave inverter
-
2. Built-in MPPT solar charge controller;
-
3. Selectable input voltage range for home appliances and personal computers
-
4. Selectable charging current based on applications
-
5. Configurable AC/Solar input priority via LCD setting
-
6. Compatible to mains voltage or generator power
-
7. Auto restart while AC is recovering
-
8. Overload and short circuit protection
-
9. Smart battery charger design for optimized battery performance
-
10. Cold start function
-
11. Parallel operation with up to 9 units available for 5KVA build in
-
Model |
BOL-5KW |
|
RATED POWER |
|
|
Parallel |
Yes, 9pcs |
|
Input |
voltage |
230VAC |
selectable voltage range |
170-280VAC (for personal computers) 90-280VAC |
|
Frequency range |
50Hz/60Hz (auto sensing) |
|
Output |
AC voltage regulation (Batt.mode) |
230VAC±5% |
Surge power (5 seconds) |
10000VA |
|
efficiency (peak) |
93% |
|
transfer time |
10ms(for personal computers);20ms (for home appliances) |
|
waveform |
pure sine wave |
|
Battery& |
battery voltage |
48VDC |
floating charge voltage |
54VDC |
|
overcharge protection |
60VDC |
|
Max. AC charge current |
60A |
|
MAX PV array power |
4000W |
|
MPPT range@ operating voltage |
60-115V |
|
maximum PV array open circuit voltage |
145VDC |
|
Max. Solar charge current |
80A |
|
Max. Total charge current |
140A |
|
Physical |
maximum efficiency |
98% |
standby power consumption |
2W |
|
operating Environment |
Dimension, D*W*H(mm) |
155*295*455 |
Net weight (kgs) |
13KG |
|
humidity |
5%-95% |
|
operating temperature |
0℃ -55℃ |
|
storage temperature |
-15℃ -60℃ |
