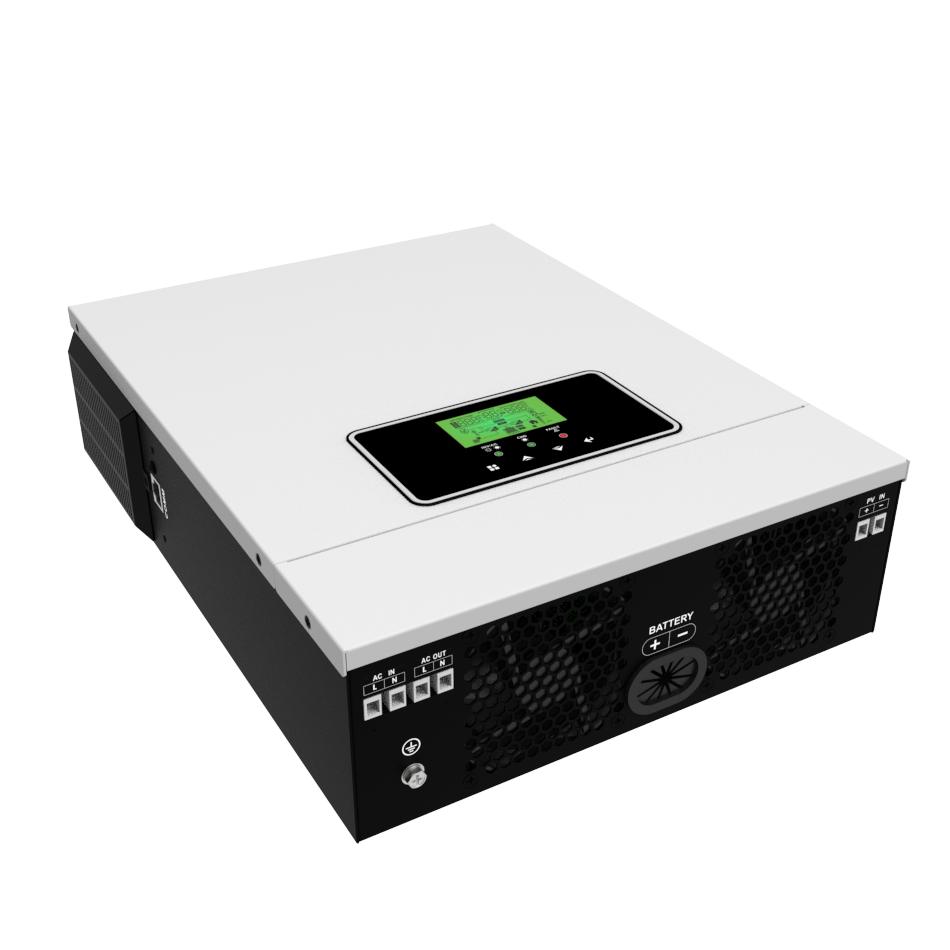

Daxtromn power 3000W 3KW 3.2kva Solar Inverter Built-in80A MPPT solar charger 24V 230VAC 50/60Hz hybrid system Solar Inverter PV input 400VDC
For Ukrine customers, we will send from Poland，usually take 4-8 days arrive
Product Features
1.Pure sine wave inverter
2.Built-in80A MPPT solar charger
3.Configurable input voltage range for home appliances and personal computers via LCD setting
4.Configurable battery charging current based on applications via LCD setting
5.Configurable AC/Solar Charger priority via LCD settingCompatible to mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
10.WIFI/GPRS(Option)
11.Can connect to lithium battery
Question&Answer
Q: Whats the Rated output power ?
A: Its 3200VA/3000W
Q:What is the PV input voltage range?
A:30-400Vdc
Q: Whats the max charge currency for battery ?
A: Its 80A
Q: How many volts of external battery use ?
A: 24V
Q: Whats the MAX DC PV Input?
A: Its 400VDC
Q: Can it support parallel or series connection?
A: No it can not support .
Q:Can it work without batteries?
A:No, it needs to be used with batteries.
Q:Does it support WiFi?
A:Yes.
Q:Do it feed the power to grid?
A:No, it's an off-grid inverter.
|
Product Data Sheet |
||
|
Model |
AOH-2KVA |
AOH-3.2KVA |
|
RATED POWER |
2000VA/1600W |
3200VA/3000W |
|
AC Input |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170-280VAC(For Personal Computers) |
|
|
|
90-280VAC(For Home Appliances) |
|
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
|
|
AC OUTPUT |
||
|
AC Voltage Regulation |
230VAC±5% |
|
|
Surge Power |
4000VA |
6400VA |
|
Efficiency(Peak)PV to INV |
98% |
|
|
Efficiency(Peak)Battery to INV |
94% |
|
|
Transfer Time |
10 ms (For Personal Computers);20 ms (For Home Appliances) |
|
|
BATTERY & AC CHARGER |
||
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
16VDC |
33VDC |
|
Maximum AC Charge Current |
60A |
|
|
SOLAR CHARGER |
||
|
Maximum PV Array Power |
2000W |
3000W |
|
PpT Range @ Operating Voltage |
60-400VDC |
|
|
Maximum PV Array Open Circuit |
400VDC |
|
|
Voltage |
||
|
Maximum Charging Current |
80A |
|
|
PHYSICAL |
||
|
Dimension,D*W*H(mm) |
357*273*95 |
|
|
Net Weight(kgs) |
5 |
|
|
Communication interface |
RS232/GPRS/WIFI |
|
|
OPERATING ENVIRONMENT |
||
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
|
erating Temperature |
-10~50℃ |
|
Battery charging setting
