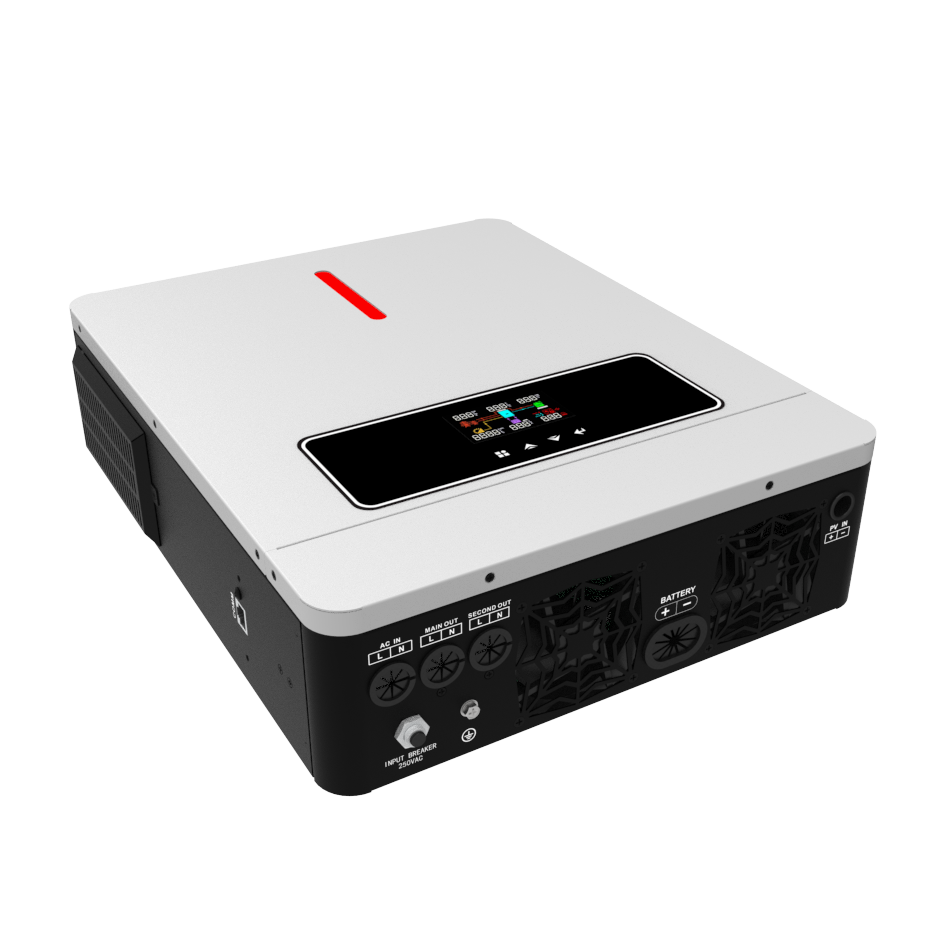

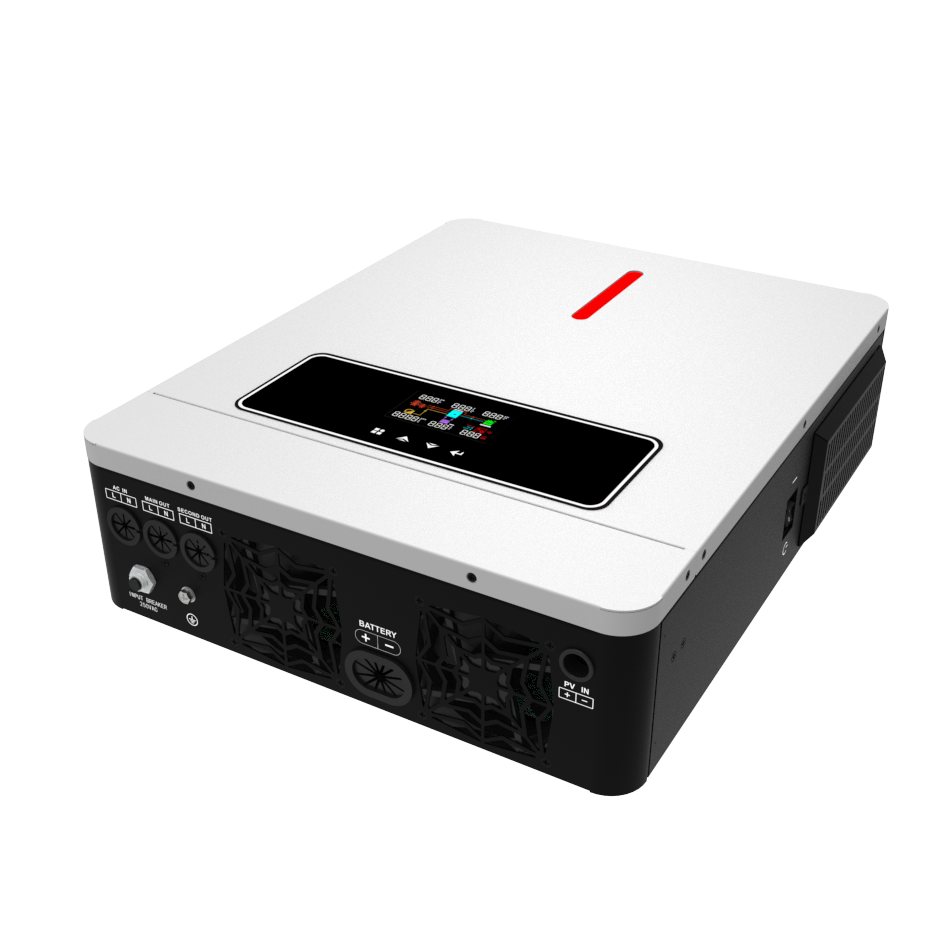

Daxtromn Power Mppt 4.2KW Hybrid Solar Inverter 24VDC Batteryless working PV input 90-450V Grid Tie Hybrid Solar Inverter 48V 220V 120-450VDC 140A MPPT Solar Controller Dual Ouput Photovoltaic Inverter
Mutil Language Manual
Italia Italiano AGH-4.2KW-PRO AGH-6.2KW-PRO.pdf -
French Français AGH-4.2KW-PRO AGH-6.2KW-PRO
Deutsch German AGH-4.2KW-PRO AGH-6.2KW-PRO
GREECE Ελληνικά AGH-4.2KW-PRO AGH-6.2KW-PRO
Polish Polski AGH-4.2KW-PRO AGH-6.2KW-PRO
Română ROMANIA AGH-4.2KW-PRO AGH-6.2KW-PRO
Portugal Português AGH-4.2KW-PRO AGH-6.2KW-PRO
Ukrine УкраїнськаName AGH-4.2KW-PRO AGH-6.2KW-PRO
Български език Bulgarian AGH-4.2KW-PRO AGH-6.2KW-PRO
Spanish Español AGH-4.2KW-PRO AGH-6.2KW-PRO
English AGH-4.2KW-PRO AGH-6.2KW-PRO
Package Included
1x 4.2kw Hybrid solar inverter
1x English manual
1x Wifi-plug
1x Wifi-plug connection Cable
Feature Of AGH-4.2KW-PRO
1.Pure Sine Wave Solar Inverter
2.Max 120A MPPT Solar Charger
3.Max 500VDC PV Input

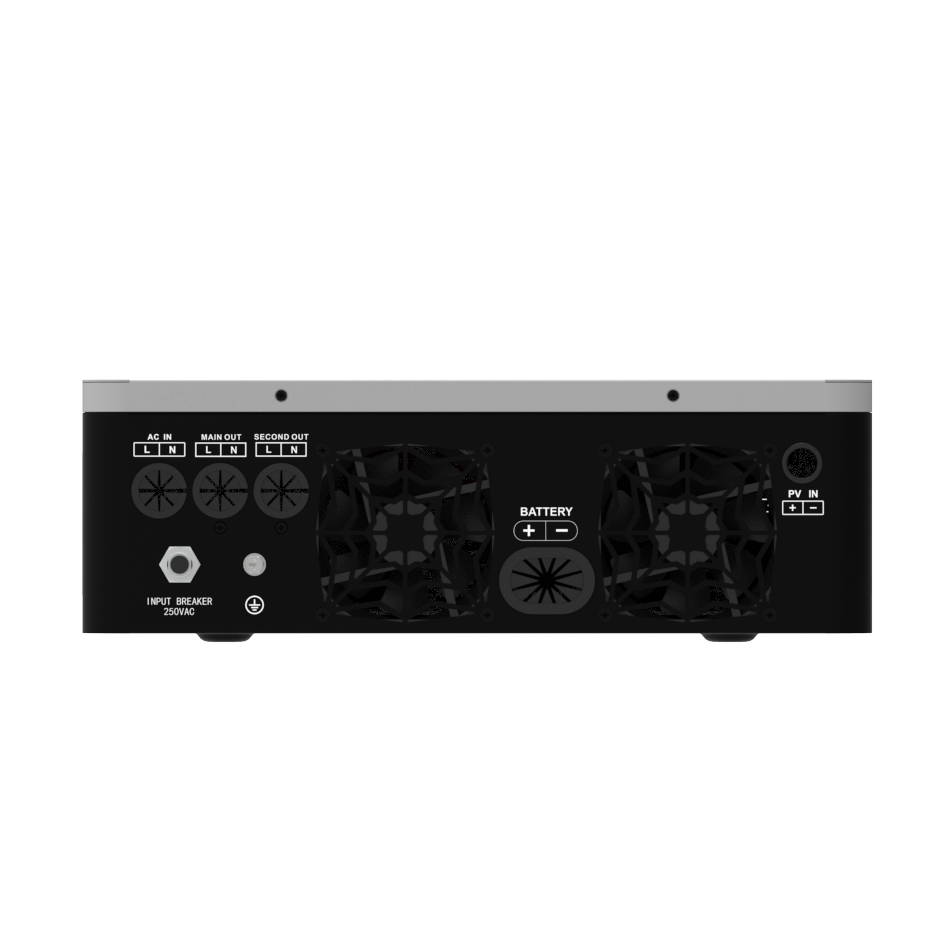

4. 2 Loads Output
5.High PV input voltage range(120~450VDC)
6.Output power factor 1.0
7.Real Hybrid Solar inverter for 24V/48V system
8.Wifi Module for easily connection
9.Efficiency work with or without battery

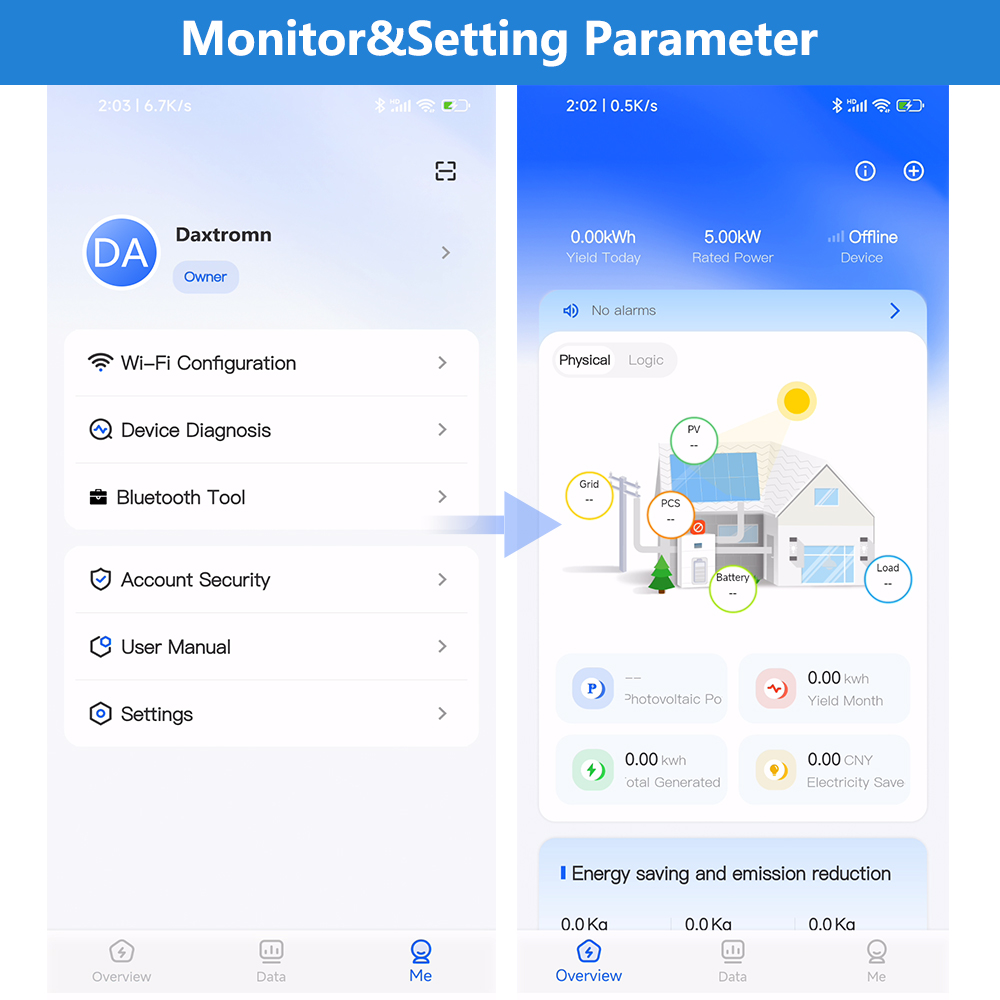

10.Bundled monitoring & setting software
11.Supports 50hz or 60hz (program adjustable)
12.Able to use ac grid or generator power
13.Built-in anti-dusk kit for harsh environment
14.Optional DC output for DC fan, LED bulb,router and so on
Specification Of 4200W 6200W Hybrid Solar Inverter
|
Model |
AGH-4.2KW-PRO |
AGH-6.2KW-PRO |
|
Phase |
1-Phase |
|
|
Maximum PV Input Power |
6200W |
6500W |
|
Rated Output Power |
4200W/4200VA |
6200W/6200VA |
|
Maximum Solar Charging Current |
6.2KW 120A 4.2KW 140A |
|
|
GRID-TIE OPERATION |
||
|
PV Input(DC) |
|
|
|
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
|
Start-up Voltage/Initial Feeding Voltage |
90VDC/120VDC |
|
|
MPPT Voltage Range |
90~450VDC |
|
|
Number of MPPT/Max Input Current |
1/23A |
|
|
GRID OUTPUT(AC) |
|
|
|
Norminal Output Voltage |
220/230/240VAC |
|
|
Output Valtage Range |
195.5~253VAC |
|
|
Norminal Output Current |
18.2A |
27.0A |
|
Power Factor |
>0.99 |
|
|
Feed-in Grid Frequency Range |
49~51±1Hz |
|
|
EFFICIENCY |
|
|
|
Max Conversion Efficiency(Solar to AC) |
98% |
|
|
TWO LOAD OUTPUT POWER(V2.0) |
|
|
|
Full Load |
4200W |
6200W |
|
Maximum Main Load |
4200W |
6200W |
|
Max Second Load(battery mode) |
1400W |
2067W |
|
Main Load Cut Off Voltage |
22VDC |
44VDC |
|
Main Load Return Voltage |
26VDC |
52VDC |
|
OFF-GRID OPERATION |
|
|
|
AC Input |
||
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
|
Maximum AC Input Current |
30A |
40A |
|
Nominal operating frequency |
50/60Hz |
|
|
Surge power |
7200W |
|
|
BATTERY MODE OUTPUT(AC) |
|
|
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Output Waveform |
Pure sine wave |
|
|
Efficiency(DC to AC) |
94% |
|
|
BATTERY&CHARGER |
|
|
|
Nominal DC Voltage |
24VDC |
|
|
Maximum Solar Charging Current |
120A |
|
|
Maximum AC Charging Current |
100A |
|
|
PHYSICAL |
|
|
|
Dimension,D*W*H(mm) |
110*334*423 |
|
|
Net Weight(Kgs) |
9.5 |
|
|
INTERFACE |
|
|
|
Communication Port |
RS232/WIFI/GPRS |
|
|
ENVIRONMENT |
|
|
|
Operating Temperature |
-10~50℃ |
|
