    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied
    MPPT Hybrid Solar Inverter 5KW 48V 230V  450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied

    MPPT Hybrid Solar Inverter 5KW 48V 230V 450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied

    EU Stock Vat Free Parallel WIFI usb WIFI Support
    Save $105
    $49500
    $60000
    Shipping From
    Poland
    Quantity
    Only 95 left
    Inventory quantity: 95
    Buy now
    Europion Union Fast shipping
    Free returns
    Carbon neutral
    Secure payments







    MPPT Hybrid Solar Inverter 5KW 48V 230V 450Vdc 5000w PV 80A Battery Charger build in Parallel kit RS232 Dry Contact Grid Tied



    Main Features:



    • Pure sine wave max 5000w output

    • Max 80A MPPT solar charger (max 5kw PV array)

    • Max 450Vdc input

    • HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system

    • Parallel support up to 9 units Parallel card Included

    • Work with 48V battery

    • Total system max charging: 80A

    • Bundled monitoring & setting software

    • Supports 50hz or 60hz (program adjustable)

    • Grid feedback when there is excess energy

    • USB interface available

    • Able to use ac grid or generator power

    • Timer setting for AC charging & output now available

    • Wifi Support(not include)



    Noted:

    1. Because this inverter is non isolated, only three types of PV modules are acceptable: single crystalline, poly crystalline with class A rated and CIGS modules.
    To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter. For example, grounded PV modules will cause current leakage to the inverter. When using CIGS modules, please be sure NO grounding.

    2.Before connecting to AC in put power source , please install a separate AC breaker between inverter and AC input power source.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is 16A for 1.5KW and 32A for 3KW and 5 0A for 5KW;
    There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis connect input and output connectors.S





    Model

    BGH-5KW

    Max.PV Array Power 5000W

    5000W

    Rated Output Power

    5000W

    Maximum PV Array Open Circuit Voltage

    450VDC

    MPPT Range @Operating Voltage

    120 VDC~430 VDC

    MPPT Tracker Number

    1

    GRID-TIE OPERATION

    GRID OUTPUT(AC)

    Nominal Output Voltage

    220/230/240 VAC

    Output Voltage Range

    184-264.5VAC or 195.5-253VAC(Select-able)

    Nominal Output Current

    21.7A

    Power Factor

    >0.99

    EFFICIENCY

    Maximum Conversion Efficiency(DC/AC) 95%

    OFF-GRID, HYBRID OPERATION

    GRID INPUT

    Acceptable Input Voltage Range

    90-280VAC or 170-280VAC

    Frequency Range

    50Hz/60Hz(Auto sensing)

    Maximum AC Input Current

    40A

    BATTERY MODE OUTPUT(AC)

    Nominal Output Voltage

    220/230/240/VAC

    Output Waveform

    Pure Sine Wave

    Efficiency(DC to AC)

    93%

    BATTERY & CHARGER

    Nominal DC Voltage

    48VDC

    Maximum Solar Charge Current

    80A

    Maximum AC Charge Current

    80A

    Maximum Charge Current

    80A

    GENERAL

    PHYSICAL

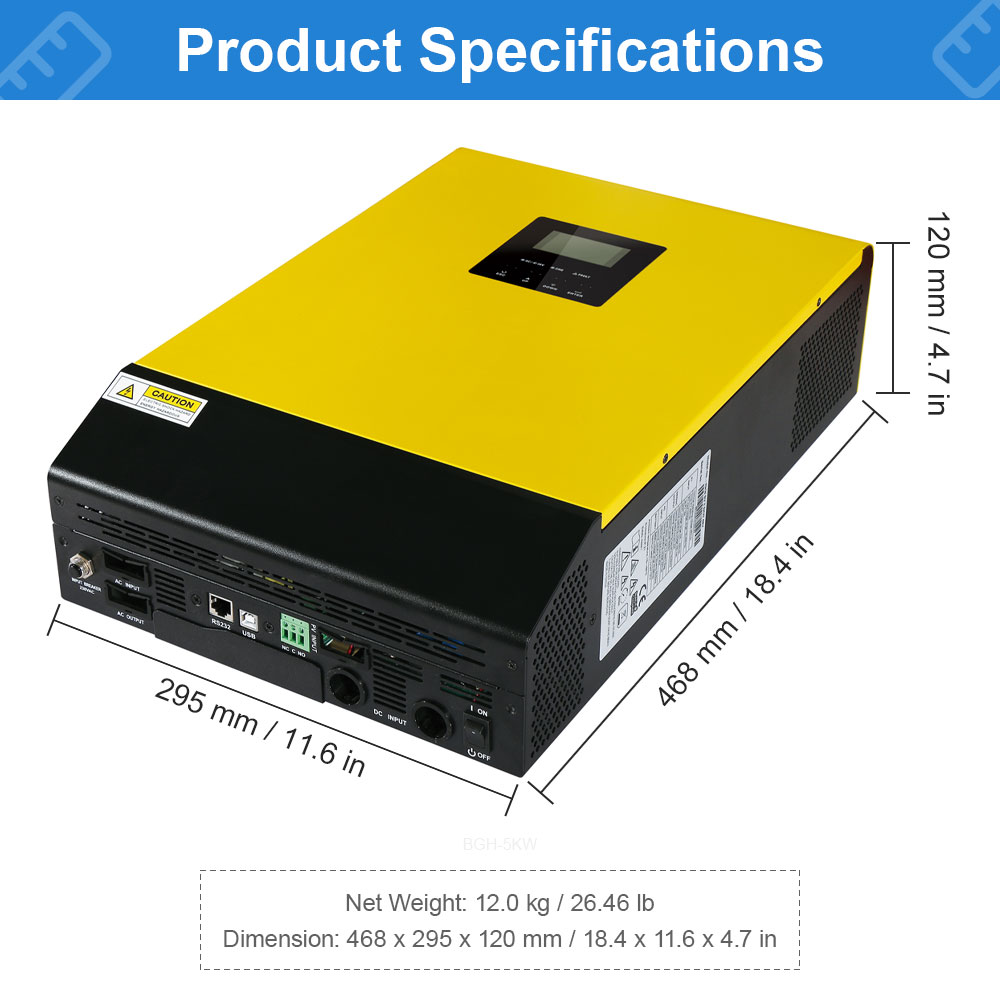

    Dimension,D*W*H(mm)

    120*295*468

    Net Weight (kgs)

    12KG

    INTERFACE

    Parallel Function

    Yes,9 Units

    Communication Ports

    USB,RS-232 and dry contact

    ENVIRONMERNT

    Humidity

    0~90%RH(Non-condensing)

    Operating Temperature

    -10℃ to 50℃

    Q&A

    1.This inverter can be parallel ? Yes, max 9 units

    2.What is The PV range of this inverter?120-450v

    3.It is support Wifi? yes, but default not with wifi plug

    4.Have dry contact function? Yes

    5.It can work without battery? Not support

    6.it is an hybrid inverter can feed back power to grid? Yes
