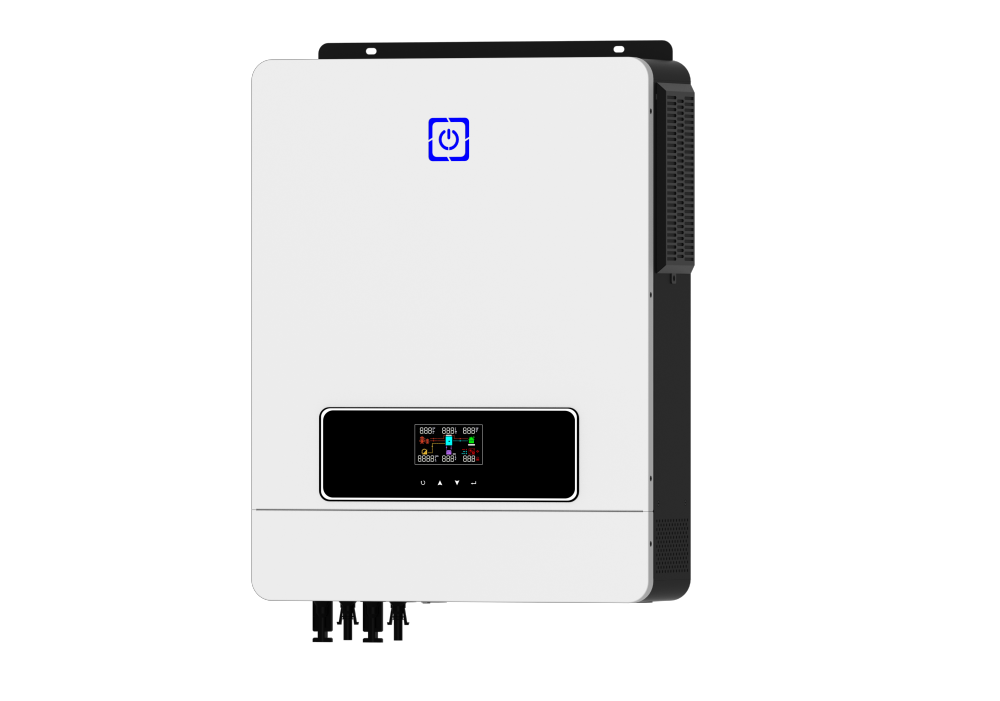

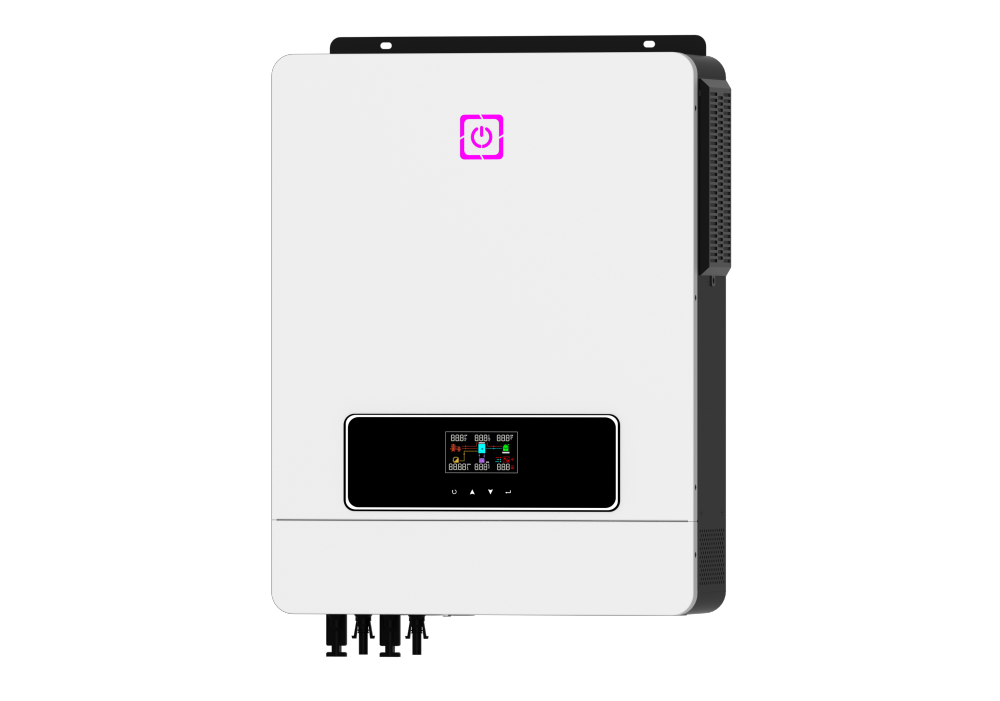

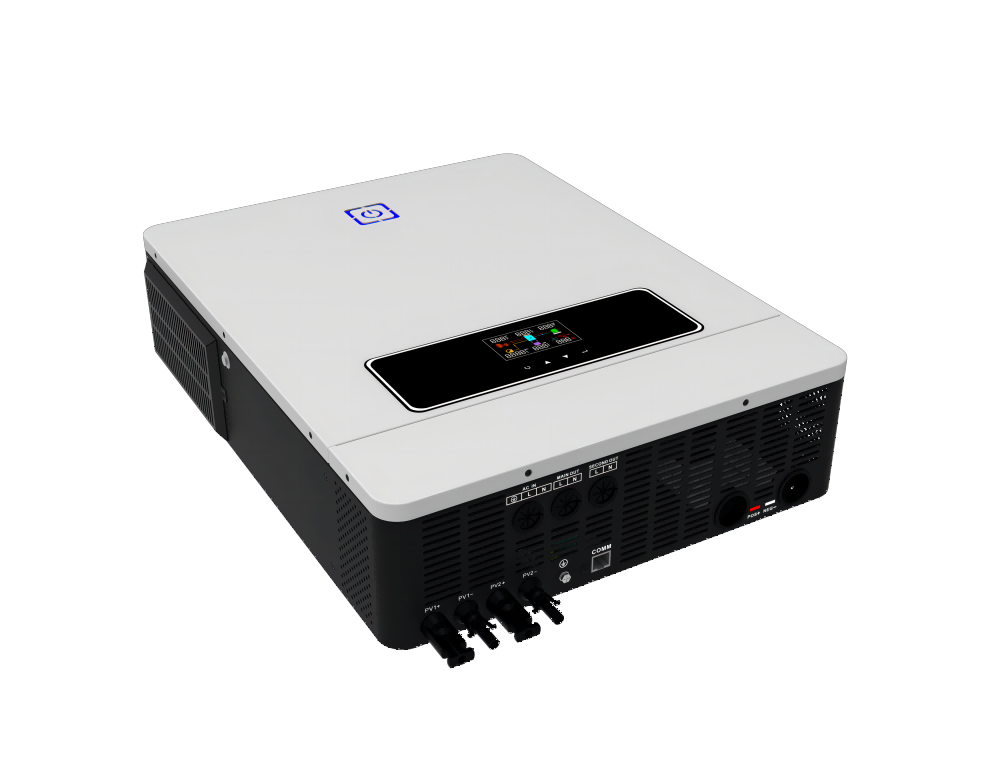

DAXTROMN POWER MPPT 140A 160A On-Grid/Off-Grid 10kw 10.2KW Pure Sine Wave Inverter with Charger DC 48V 230VAC Daul PV In-Put a 2 Output 100000w
BMS Vision
Manual for mutil language
Arabic بالعربية AGH-8.2KW AGH-10.2KW 2mppt manual(1) (15)
Croatian Hrvatska AGH-8.2KW AGH-10.2KW 2mppt manual(1) (18).pdf -
French Français AGH-8.2KW AGH-10.2KW 2mppt manual(1) (6).pdf -
Czech Chorvatština AGH-8.2KW AGH-10.2KW 2mppt manual(1) (11).pdf -
irish Éireann AGH-8.2KW AGH-10.2KW 2mppt manual(1) (13).pdf -
Japenese 日本語 AGH-8.2KW AGH-10.2KW 2mppt manual(1) (14).pdf -
Hungary Magyarország AGH-8.2KW AGH-10.2KW 2mppt manual(1) (5).pdf -
German Deutsch 10.2kw manual .pdf -
Greece Ελλάδα AGH-8.2KW AGH-10.2KW 2mppt manual(1) (9).pdf -
Italian AGH-8.2KW AGH-10.2KW 2mppt manual(1) (4).pdf -
Lithuania Lietuva AGH-8.2KW AGH-10.2KW 2mppt manual(1) (10).pdf -
Romania România AGH-8.2KW AGH-10.2KW 2mppt manual(1) (3).pdf -
Russian Русский язык AGH-8.2KW AGH-10.2KW 2mppt manual(1) (12).pdf -
Korean 한국 사람 AGH-8.2KW AGH-10.2KW 2mppt manual(1) (16).pdf -
Български език Bulgaria AGH-8.2KW AGH-10.2KW 2mppt manual(1) (7).pdf -
Polish Polski AGH-8.2KW AGH-10.2KW 2mppt manual(1) (2).pdf -
Slovakia Slovensko AGH-8.2KW AGH-10.2KW 2mppt manual(1) (17).pdf -
spanish Español 10.2kw manual.pdf -
Ukraine Україна AGH-8.2KW AGH-10.2KW 2mppt manual(1) (8).pdf -
Package Included
1x 10.2kw Hybrid solar inverter
1x English manual
1x Wifi-plug
1x Wifi-plug connection Cable
Features
1.Pure sine wave solar inverter(on/off Grid)
2.Output power factor 1.0
3.WIFI available for lOS and Android
4.Inverter running without battery
5.One-key restoration to factory Settings
6.Built-in Lithium battery automatic activation
7.Built-in 160A MPPT solar charger
8.High PV input voltage range(90~450VDC)
9.Built-in anti-dusk kit for harsh environment
10.Smart battery charge design to optimize battery life
11.Touch button
12.Dual output 2 AC Output function
What is 2AC out function?
when there is no Main/AC IN/GRID INPUT ,and the battery lower than the setted voltage .
the main AC out will cut off automatically, the battery or pv only offer power for the second AC out
|
Model |
AGH-8.2KW |
AGH-10.2KW |
|
Phase |
1-Phase |
|
|
Maximum PV Input Power |
8200W |
10200W |
|
Rated Output Power |
8200W/8200VA |
10200W/10200VA |
|
Maximum Solar Charging Current |
160A |
|
|
GRID-TIE OPERATION |
||
|
PV Input(DC) |
|
|
|
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
|
Start-up Voltage/Initial Feeding Voltage |
90VDC/120VDC |
|
|
MPPT Voltage Range |
90VDC~450VDC |
|
|
Number of MPPT/Max Input Current |
1/27A 2MPPT 2/27A |
|
|
GRID OUTPUT(AC) |
||
|
Norminal Output Voltage |
220/230/240VAC |
|
|
Output Valtage Range |
195~253VAC |
|
|
Norminal Output Current |
35.6A |
44.3A |
|
Power Factor |
>0.99 |
|
|
Feed-in Grid Frequency Range |
49~51±1Hz |
|
|
EFFICIENCY |
||
|
Max Conversion Efficiency(DC/AC) |
98% |
|
|
TWO LOAD OUTPUT POWER |
||
|
Full Load |
8200W |
10200W |
|
Maximum Main Load |
8200W |
10200W |
|
Max Second Load(battery mode) |
2733W |
3400W |
|
Main Load Cut Off Voltage |
44VDC |
|
|
Main Load Return Voltage |
54VDC |
|
|
OFF-GRID OPERATION |
||
|
AC Input |
||
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
|
Maximum AC Input Current |
40A |
50A |
|
Nominal operating frequency |
50/60Hz |
|
|
Surge power |
16400W |
20400W |
|
PV INPUT(DC) |
||
|
Maximum DC Voltage |
500VDC |
|
|
MPPT Voltage Range |
90VDC~450VDC |
|
|
Numben of MPPT/Max Input Current |
1/27A |
|
|
BATTERY MODE OUTPUT(AC) |
||
|
Nominal Output Voltage |
220/230/240VAC |
|
|
Output Waveform |
Pure sine wave |
|
|
Efficiency(DC to AC) |
94% |
|
|
BATTERY&CHARGER |
||
|
Nominal DC Voltage |
48VDC |
|
|
Maximum Solar Charging Current |
160A |
|
|
Maximum AC Charging Current |
140A |
|
|
PHYSICAL |
||
|
Dimension,D*W*H(mm) |
420*310*110 |
|
|
Carton Dimension,D*W*H(mm) |
588*463*205 |
|
|
Net Weight(Kg) |
14.2 |
14.5 |
|
Gross Weight(Kgs) |
15.7 |
16 |
|
INTERFACE |
||
|
Communication Port |
WiFi |
|
|
ENVIRONMENT |
|
|
|
Operating Temperature |
-10~50℃ |
|
| 37 | GRID-tie operation |
Off grid (default)
|
Inverter operates only in off-gridmode Solar energy provides powertothe loadsas first priority and chargingsecond |
|
Hybrid
|
Inverter operates hybrid mode. Solarenergy provides power to the loads asfirst priority and charging secondExcess energy feed to grid. |
Monitor
Support Online Monitor and Setting (if need demonstration contact us on message,we will send you link for the video)
Most of the Value can be setting online visualized operation
Can monitor several device add,help for massive management
Support phone APP setting and monitor
Daxtromn AGH-10.2KW Manual
WIFI APP Download
Daxtromn Solar Inverter How To Setting Wifi Monitor And PC Online Monitor?
