    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid

    Daxtromn power 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid

    2AC OUT Function ,Free Shipping to European Union no extra cost,with wifi Plug
    $355.00 USD $0.00 USD
    Power Rate
    AGH-3.6KW-PRO-WIFI
    AGH-6.2KW-PRO-WIFI
    Ship From
    Poland
    Quantity
    Only 156 left
    Inventory quantity: 156
    Buy now
    Europion Union Fast shipping
    Free returns
    Carbon neutral
    Secure payments

    Daxtromn 3.6KW 6.2KW solar inverter 24VDC 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid

    Feature Of AGH-3.6KW 6.2KW PRO Hybrid Solar Inverter



    1.Pure Sine Wave Solar Inverter

    2.Max 120A MPPT Solar Charger

    3.Max 500VDC PV Input

    4.2 Loads Output To Guarantee your important equipment always running

    5.High PV input voltage range(120~450VDC)

    6.Output power factor 1.0

    7.Real Hybrid Solar inverter for 24V/48V system

    8.Wifi Module for easily connection

    9.Efficiency work with or without battery

    10.Bundled monitoring & setting software

    11.Supports 50hz or 60hz (program adjustable)

    12.Able to use ac grid or generator power

    13.Built-in anti-dusk kit for harsh environment

    14.Optional DC output for DC fan, LED bulb,router and so on

    15.PC online monitor support


    What is 2AC out function?
    when there is no Main/AC IN/GRID INPUT ,and the battery lower than the setted voltage .
    the main AC out will cut off automatically, the battery or pv only offer power for the second AC out To Guarantee your important equipment always running
    Note:

    This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter to work normally, if with external battery 120V is working.

    Question & Answer

    Q:Whats the Rated output power ?
    A:Its 3600W for Model:AGH-3.6KW-PRO And 6200W for Model:AGH-6.2KW-PRO
    Q:Whats the max charge currency for battery ?
    A:Its 120A
    Q:Whats the MAX DC PV Input?
    A:Its 500VDC
    Q:How many AC output ports?
    A:2 loads ouput
    Q:How many volts of external battery use ?
    A:24V for Model :AGH-3.6KW-PRO and 48V for AGH-6.2KW-PRO
    Q:It can support Parallel ?
    A:No it can not support .If you need to support Parallel ,Please check our BGH-5KW And BOL-5KW
    Q:Whats the warranty?
    A:1 Year
    Q:If it has Wifi Model ?
    A:Yes



    Model

    AGH-3.6KW-PRO

    AGH-6.2KW-PRO

    Phase

    1-Phase

    Maximum PV Input Power

    6200W

    6500W

    Rated Output Power

    3600W/3600VA

    6200W/6200VA

    Maximum Solar Charging Current

    120A

    GRID-TIE OPERATION

    PV Input(DC)



    Nominal DC Voltage/Maximum DC Voltage

    360VDC/500VDC

    Start-up Voltage/Initial Feeding Voltage

    90VDC/120VDC

    MPPT Voltage Range

    90~450VDC

    Number of MPPT/Max Input Current

    1/23A

    GRID OUTPUT(AC)



    Norminal Output Voltage

    220/230/240VAC

    Output Valtage Range

    195.5~253VAC

    Norminal Output Current

    15.7A

    27.0A

    Power Factor

    >0.99

    Feed-in Grid Frequency Range

    49~51±1Hz

    EFFICIENCY



    Max Conversion Efficiency(Solar to AC)

    98%

    TWO LOAD OUTPUT POWER(V2.0)



    Full Load

    3600W

    6200W

    Maximum Main Load

    3600W

    6200W

    Max Second Load(battery mode)

    1200W

    2067W

    Main Load Cut Off Voltage

    22VDC

    44VDC

    Main Load Return Voltage

    26VDC

    52VDC

    OFF-GRID OPERATION



    AC Input

    AC Start-up Voltage/Auto Restart Voltage

    120-140VAC/180VAC

    Acceptable Input Voltage Range

    90-280VAC or 170-280VAC

    Maximum AC Input Current

    30A

    40A

    Nominal operating frequency

    50/60Hz

    Surge power

    7200W

    12400W

    BATTERY MODE OUTPUT(AC)



    Nominal Output Voltage

    220/230/240VAC

    Output Waveform

    Pure sine wave

    Efficiency(DC to AC)

    94%

    BATTERY&CHARGER



    Nominal DC Voltage

    24VDC

    48VDC

    Maximum Solar Charging Current

    120A

    Maximum AC Charging Current

    100A

    PHYSICAL

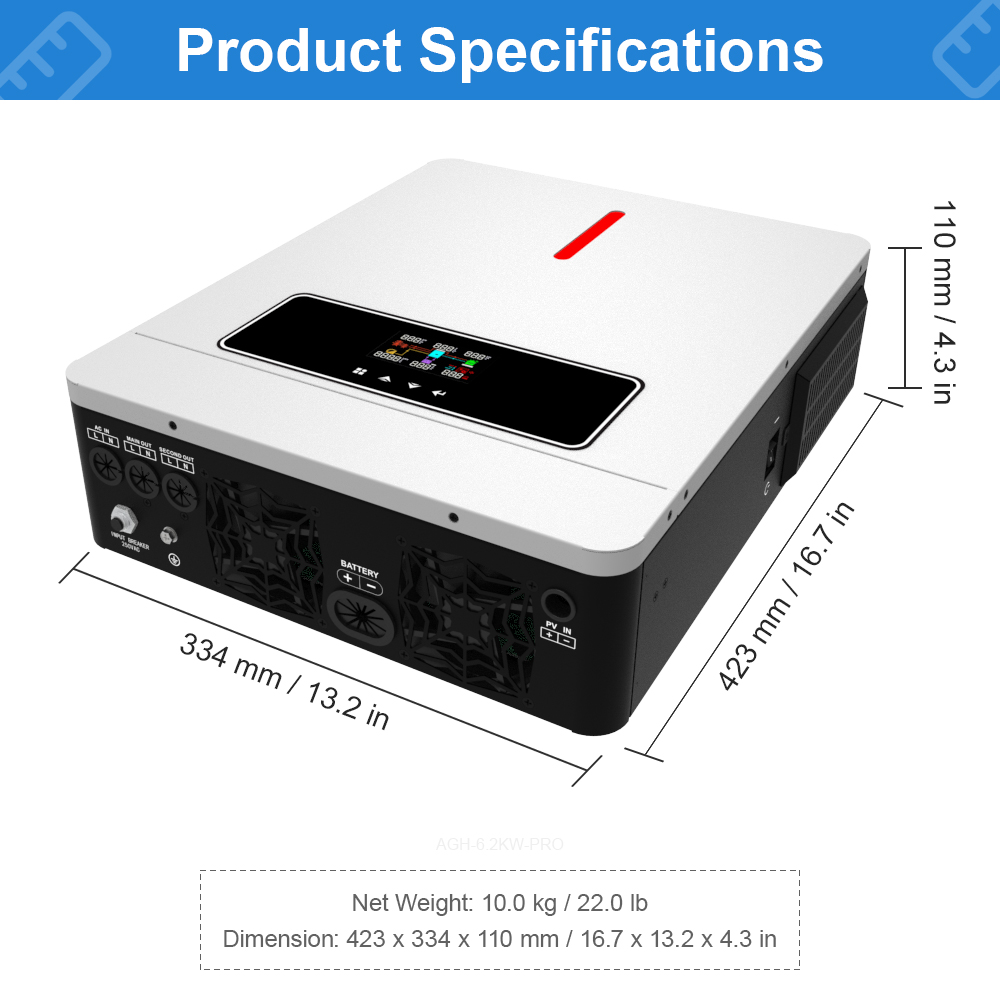

    Dimension,D*W*H(mm)

    110*334*423

    Net Weight(Kgs)

    9

    10

    INTERFACE



    Communication Port

    WIFI

    ENVIRONMENT



    Operating Temperature

    -10~50℃



    Battery Setting, charging voltage adjustable fit for AGM FLOOD and most of the Lithium Battery



    Monitor

    Support Online Monitor and Setting (if need demonstration contact us on message,we will send you link for the video)



    Most of the Value can be setting online visualized operation



    Can monitor several device add,help for massive management



    Support phone APP setting and monitor
