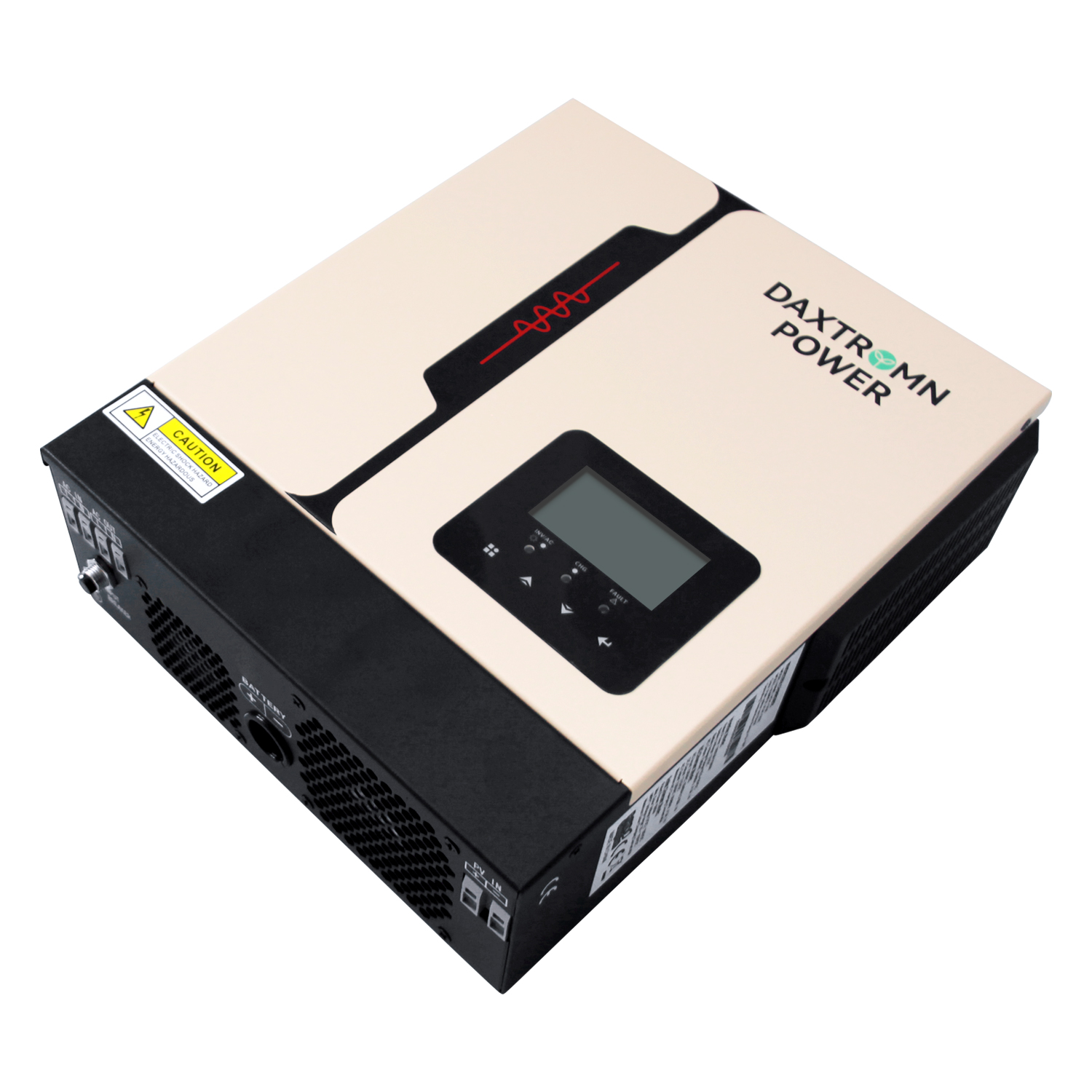

MODEL | AOL-1KW | AOH-1.5KW |
RATED Power | 1000W/1000VA | 1500W/1500VA |
AC Input |
||
Voltage | 230VAC | |
Selectable Voltage Range |
170~280VAC(For Persional Computers) | |
90~280VAC(For Home Appliance) | ||
Frequency Range | 50Hz/60Hz(Auto sensing) | |
AC Output | ||
AC Voltage Regulation | 230VAC±5% | |
Surge Power | 2000VA | 3000VA |
Efficiency(Peak)PV to INV | 98% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Persional Computers);20 ms (For Home Appliances) | |
BATTERY & AC CHARGER | ||
Battery Voltage | 12VDC | 24VDC |
Floating Charge Voltage | 13.5VDC | 27VDC |
Overcharge Protection | 16VDC | 32VDC |
Maximum AC Charge Current | 40A | |
SOLAR CHARGER | ||
Maximum PV Array Power | 550W | 1080W |
MPPT Range@ Operating Voltage | 20-150VDC | 30-150VDC |
Maximum PV Array Open Circuit Voltage | 150VDC | |
Maximum Solar Charging Current | 40A | |
Maximum (AC+Solar) Charging Current | 80A | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 286*240*91 | |
Cartoon Dimension,D*W*H(mm) | 335*295*145 | |
Net Weight(kgs) | 3 | 3.5 |
Gross Weight(kgs) | 3.5 | 4 |
