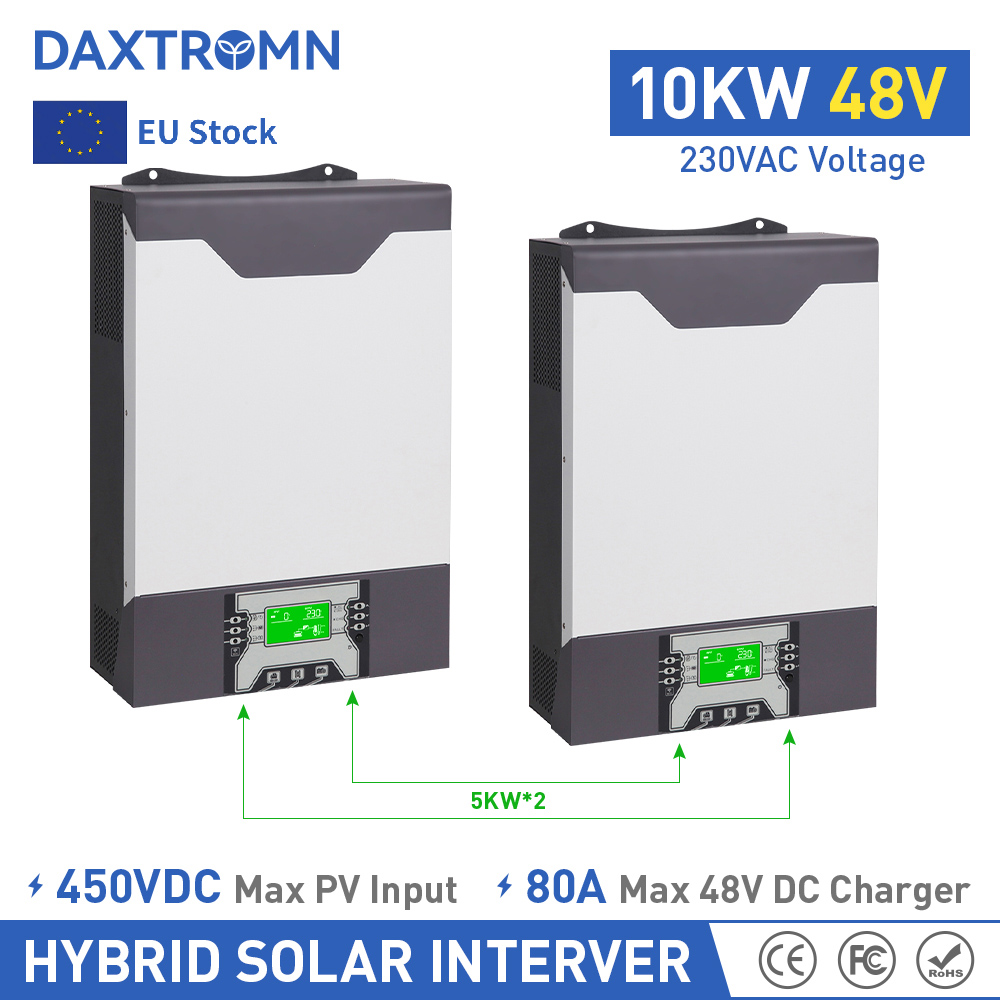

NOTE: This 10KW Solar inverter is form by 2 AGH-5KW Solar inverter,Parallel kits included, no need to buy extra.
Bellow is the specificaiton for AGH-5KW
Daxtromn Hybrid Solar Inverter 10kw PV in 10000W 48v 80A Charger Solar Controller Grid tied/off Grid Solar Inverter Parallel
Quick Details:
Pure sine wave max 5000w output
Max 80A MPPT solar charger (max 5kw PV array)
Max 500Vdc input
HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system
Parallel support up to 9 units
Battery less operation
Bundled monitoring & setting software
Supports 50hz or 60hz (program adjustable)
Grid feedback when there is excess energy
USB interface available
Able to use ac grid or generator power
Timer setting for AC charging & output now available
Model |
CGH-5KW |
Rated Power |
5000VA/5000W |
INPUT |
|
Voltage |
230VAC |
Voltage Range |
176-280 VAC at 100% load |
Voltage Range |
110-280 VAC at 50% load |
Frequency Range |
50Hz/60Hz(Auto sensing) |
OUTPUT |
|
AC Voltage Regulation(Batt.Mode) |
230VAC±3% |
Surge Power |
10400VA for 5 sec |
Efficiency(Peak) |
>95% ( Rated R load, battery full charged |
Transfer Time |
10ms typical (UPS) |
Transfer Time |
20ms typical (Appliances) |
Waveform |
Pure sine wave |
BATTERY |
|
Battery Voltage |
48 VDC |
Floating Charge Voltage |
54 VDC |
Overcharge Protection |
64 VDC |
SOLAR CHARGER & AC CHARGER |
|
Solar Charger Type |
MPPT |
Maximum PV Array Open Circuit Voltage |
500VDC |
Maximum PV Array Power |
5000W |
MPP Range@ Operating Voltage |
120-450VDC |
Maxmum Solar Charge Current |
80A |
Maximum AC Charge Current |
60A |
PHYSICAL |
|
Products Dimension,D X W X H(mm) |
456x303x147 |
Product Net Weight(kgs) |
12 |
Packing Dimension,D X W X H (mm) |
530x377x217 |
Product Gross Weight(kgs) |
14 |
Communication Interface |
Removable OTG USB/RS232/RS485/BLE/Dry-contact |
OPERATING ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature |
-10 to 50 |
Storage Temperature |
-15 to 60 |
