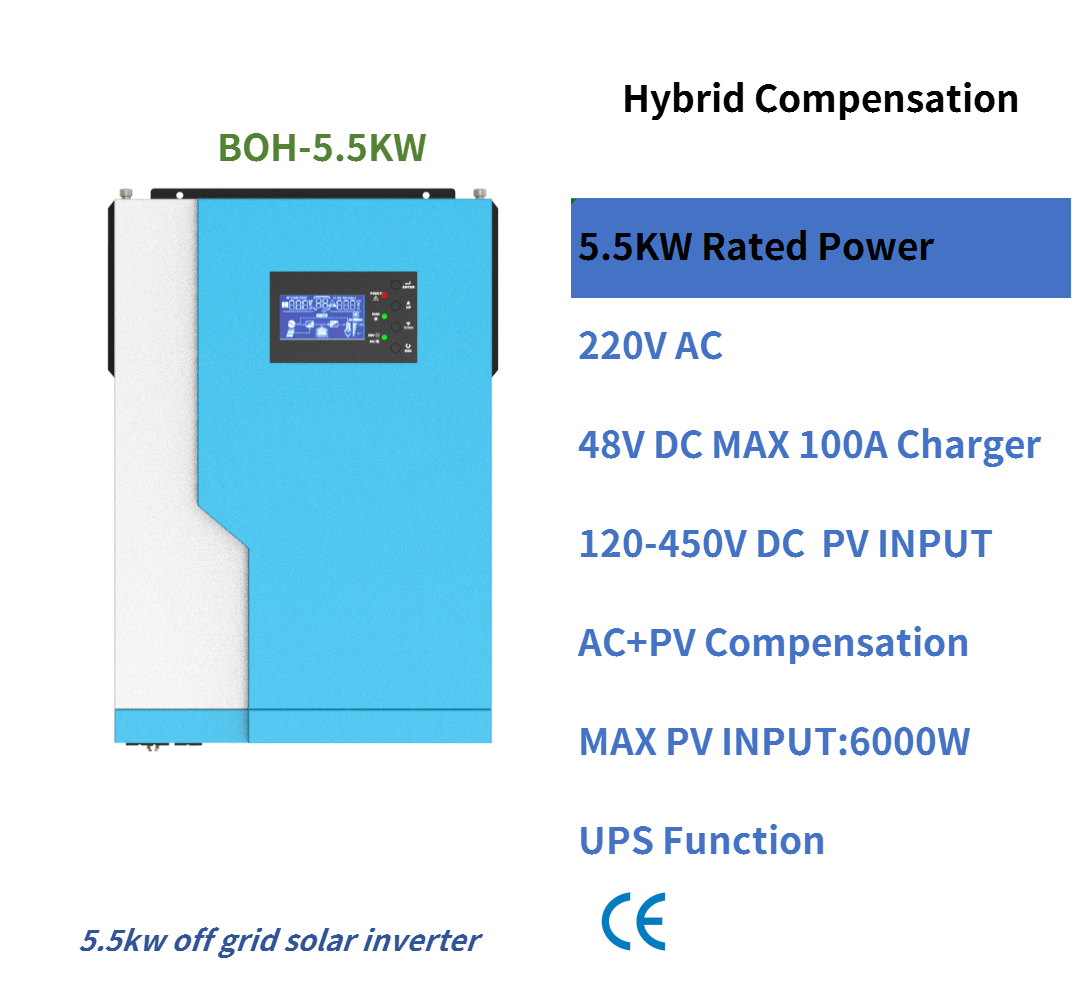

Model |
|
AOH-5.5kW |
|
RATED POWER |
|
5500VA/5500W |
|
INPUT |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170~280VAC(For Personal Computer) |
|
|
90~280VAC(For Home Appliances) |
||
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
OUTPUT |
||
|
AC Voltage Regulation(Batt. Mode) |
230VAC±5% |
|
|
Surge Power |
|
11000VA |
|
Efficiency(Peak)PV to INV. |
97% |
|
|
Efficiency(Peak)Battery to INV. |
94% |
|
|
Transfer Time |
10 ms(For Personal Computers); 20 ms(For Home Appliances) |
|
|
BATTERY & AC CHARGER |
||
|
Battery Voltage |
|
48VDC |
|
Floating Charge Voltage |
|
54VDC |
|
Overcharge Protection |
|
63VDC |
|
Maximum Charge Current |
|
100A |
|
SOLAR CHARGE |
||
|
Maximum PV Array Power |
|
6000W |
|
MPPT Range at Operating Voltage |
120~450VDC |
|
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
|
Maximum Charging Current |
|
100A |
|
Maximum Efficiency |
98% |
|
|
PHYSICAL |
||
|
Dimension, D*W*H(mm) |
100*300*440 |
|
|
Net Weight(kgs) |
|
12 |
|
Communication Interface |
WIFI |
|
|
OPERATING ENVIRONMENT |
||
|
HUMIDITY |
5% to 95% Relative Humidity(Non~Condensing) |
|
|
Operating Temperature |
0℃~55℃ |
|
|
Storage Temperature |
-15℃~60℃ |
|
